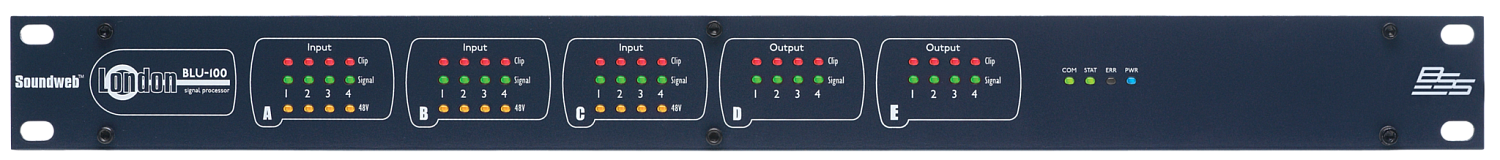

BSS BLU101 Audio Matrix with Feedback Suppressor

Professional sound processor with automatic feedback suppressor BSS BLU-101 - a high-power, intelligent sound matrix, the filling consists of many audio signal control elements. BSS BLU-101 can be installed in the audio path as the main element for controlling and distributing the audio signal.
This processor has proven itself well in our Temple scoring projects.
Using the software, it is possible to build your own signal processing structure, which allows you to have a full-fledged audio signal control panel.
The feedback function is very helpful in rooms with very high reverberation times; by choosing the BSS BLU-101 processor, we were able to achieve high-quality sound without unnecessary overtones.
Audio matrix 12 analog mic/line inputs 8 analog outputs. Soundweb London DSP processor, 12 independent AEC algorithms.

SPECIFICATIONS:

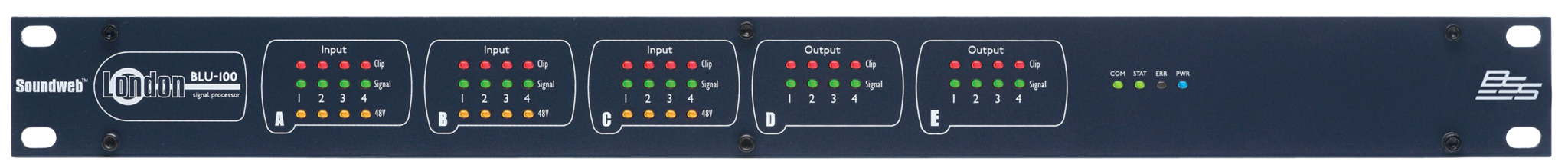

Front panel LED indicators:
PerInput: Signal present, CLIP, 48V (input only)
Other: COM, STAT, ERR, PWR

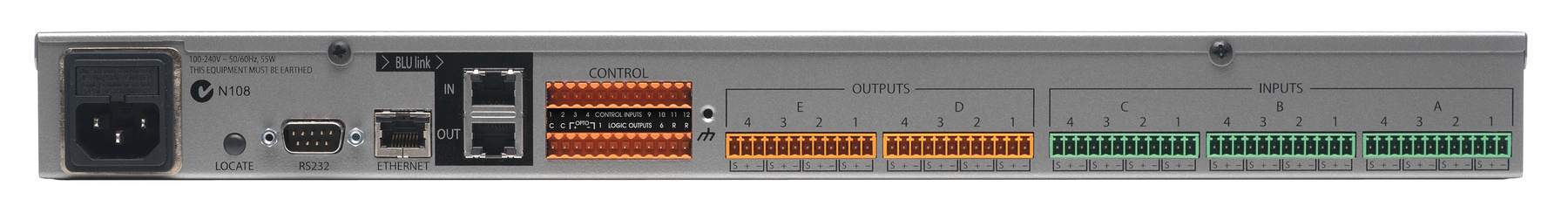

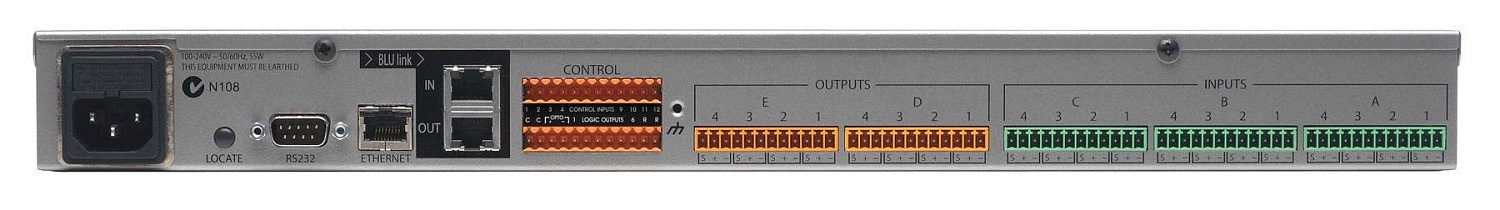

Analog Inputs: 12 electronically on PhoenixCombicon balanced removable screw connectors
Mic/Line Inputs: Nominal gain 0dB, electronically switchable up to +48dB, in steps of +6dB
Input impedance: 3.5kΩ
Maximum input level: +20dBu with 0dB input gain, +8dBu with 12dB gain
CMRR: >75dB at 1kHz
Input Noise (E.I.N.):
Phantom Power: 48V nominal, selectable per input
A/D Latency: 37/Fs [0.77ms@48k]
Analogue outputs: 8 electronically on balanced Phoenix/Combicon removable screw connectors
Maximum Output Level: +19dBu
Frequency range: 20Hz-20kHz (+0.5dB / -1dB)
THD: <0.01% 20Hz to 20kHz, +10dBu output
Dynamic Range: 108dB typical, 22Hz-22kHz unweighted
Output Impedance: 40Ω balanced and 20Ω unbalanced
D/A Latency: 29/Fs [0.60ms@48k>]
Control ports: 12 inputs and 6 outputs
Input voltage control: 0 to 4.5V
Control Input Impedance: 4.7kΩ to +5V (2-wire mode), >1MΩ (3-wire mode)
Logic Output Voltage: 0 or +5V
Logic Output Impedance: 440Ω
Logic Output Current: 10mA source, 60mA sink
Output: Phoenix/Combicon connector for trouble-free monitoring
Output current: max 14mA
Withstand voltage: 80V maximum (Off)
Resistance: 220Ω (isolated)
Network management:
Connectors: RJ45 Ethernet connector
Maximum cable length: 100m/300ft on Category 5 cable between device and Ethernet switch
Connectors: 2 RJ45 LAN connectors
Maximum cable length: 100m/300ft on category 5e cable between devices
Maximum. Number of nodes: 60
Latency: 11/Fs [0.23ms@48k]
End-to-End Latency: 4/Fs [0.08ms@48k]
Power and dimensions:
Mains voltage: 100-240VAC, 50/60Hz
Power consumption: <55VA
BTU Rating:
Temperature operating range: 15 - 35 degrees Celsius
Dimensions: (H x W x D): 45mm x 483mm x 229mm
Weight: 2.9 kg.
